Hardinge TA 51 MYT-MSY
เครื่องกลึง ซีเอ็นซี ฮาร์ดิง Hardinge CNC Lathe/Turining TA 51 MYT-MSY
ศูนย์กลึงแบบมัลติฟังก์ชันขนาดกะทัดรัดที่ผสานความแม่นยำสูง ความแข็งแกร่งสูง และประสิทธิภาพสูง มีแกน Y และป้อมปืนขับเคลื่อนด้วยพลังงานมาเป็นมาตรฐาน สามารถประมวลผลชิ้นส่วนที่ซับซ้อนในหลายกระบวนการได้ในขั้นตอนเดียว และสามารถตอบสนองความต้องการการผลิตที่หลากหลาย
A compact multifunctional turning center that integrates high precision, high rigidity, and high efficiency. It is equipped with a Y-axis and a powered turret as standard. It can complete the processing of complex parts in multiple processes in one clamping and can meet diverse production needs.
Technical Parameters
| TA51 MYT | TA51 MSY | ||
| Spindle nose | 20C/A2-6 | 20C/A2-6 | |
| Spindle speed | rpm | 5000 | 5000 |
| Spindle power | kW | twenty two | twenty two |
| Spindle torque | Nm | 197 | 197 |
| X/Z axis travel | mm | 180/652 | 180/652 |
| Y-axis travel | mm | ±42 | ±42 |
| Maximum cutting diameter | mm | 340 | 340 |
| Maximum cutting length | mm | 578 | 578 |
| Bar Throughput | mm | 51 | 51 |
| Turret tool positions | 12(16) | 12(16) | |
| X/Z axis fast moving speed | m/min | 30/30 | 30/30 |
| Servo tailstock | MT#4 | – | |
| Sub-spindle | – | 16C/A2-5 |
Machine features
BMT Power Turret
- Adopt servo motor drive, hydraulic locking, three-piece end gear structure, no lifting when changing tools.
- All tool positions can be equipped with power tool holders, the maximum speed of power tools: 6000rpm.
- Standard 12T BMT55 power tool turret, square handle tool specification 25mm.
- Optional 16T BMT45 power tool turret, square handle tool specification 20mm
Interpolation Y-axis
- Optimize the force structure of the turret in the Y direction and improve the rigidity of the turret and pallet assembly, which is beneficial to improve the overall rigidity of the machine tool.
Control System

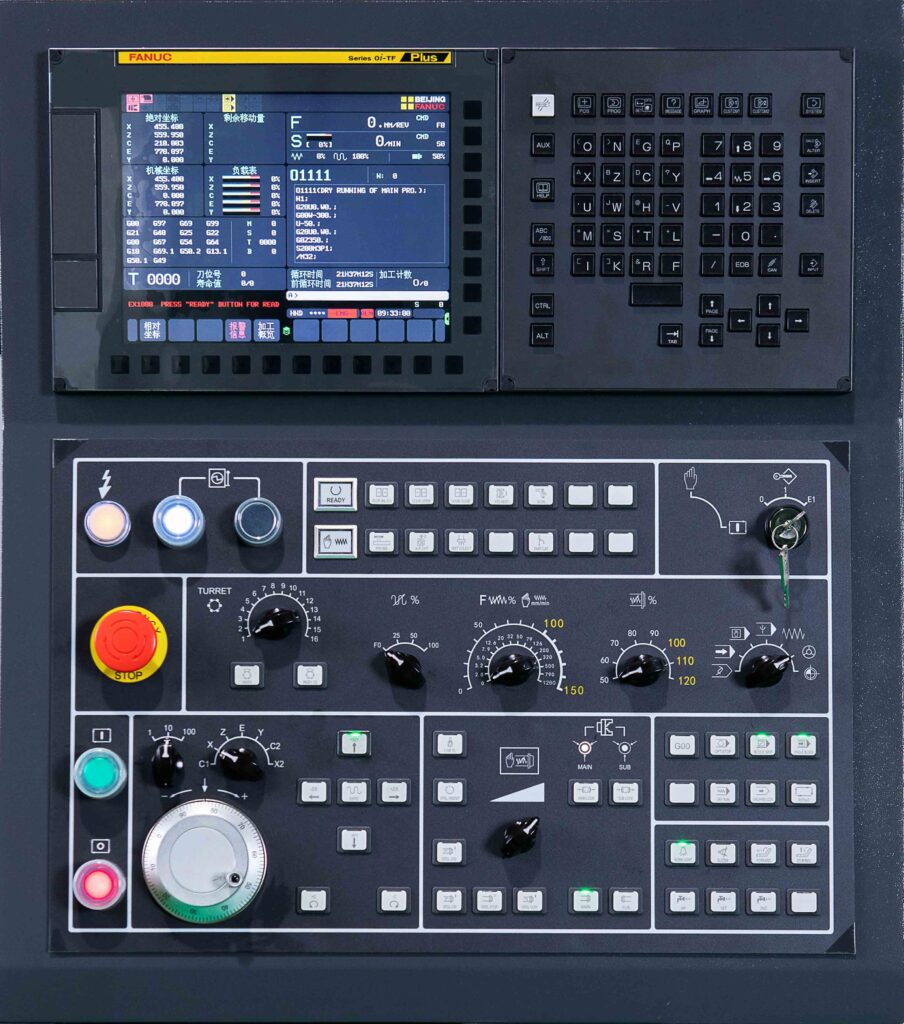

Fanuc 0i TF Plus
- 10.4” display
- HRV3 control
- 2-axis interpolation
- Programming resolution 0.001mm
- Program storage capacity 2MB
- Number of tool compensations 128
- Program storage capacity 2MB
- Number of registered programs 1000
- Background editing function
- Memory card editing and running
- Working time/parts number display
- Self-diagnosis function
- Dynamic graphic display
- User macro program
- Thread cutting
- Thread cutting retract
- G31 jump
- Programmable data input

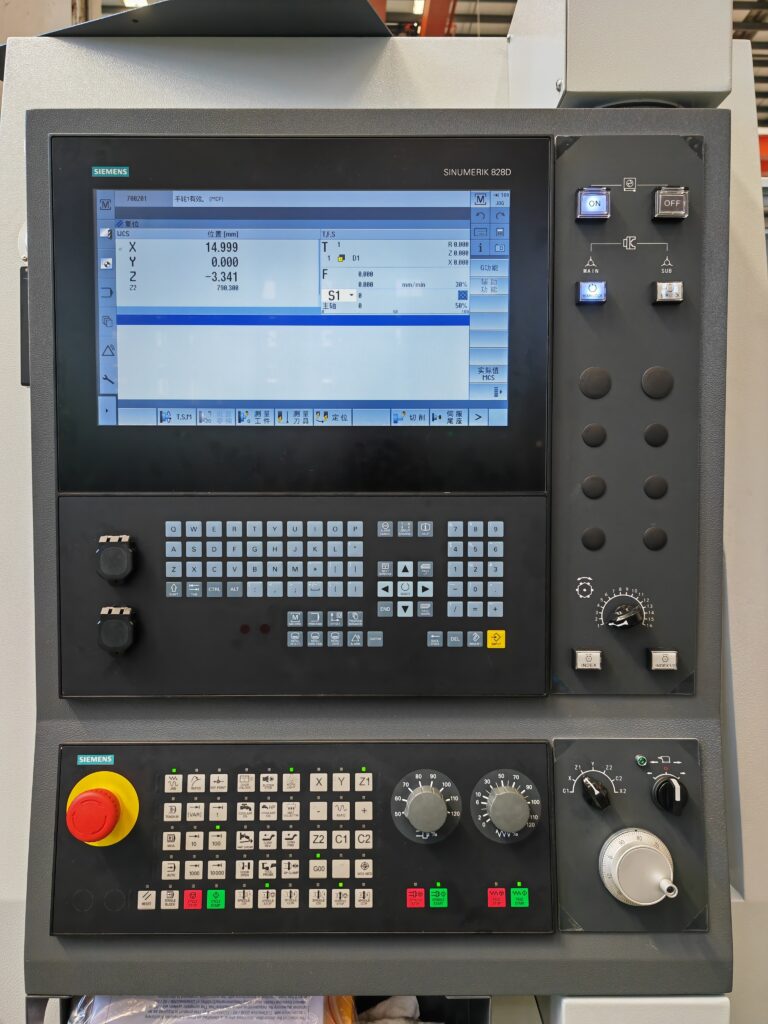

Siemens 828D
- 15″ color display
- Integrated QWERTY keyboard
- Segment switching time 9ms
- Graphical conversational programming
- Linear, circular and helical interpolation
- Acceleration control
- Movement time and workpiece counting
- Machine option management (Easy Extend)
- Backup management (Easy Archive)
- Polar coordinate programming
- Graphical human-machine interface
- Online help
- CNC user memory (cache),
- For storing part CNC machining programs 3MB
- Tool management function with tool life monitoring
- Number of tools/cutting edges in the tool table 128/256
- Backlash and lead screw pitch error compensation
